Feature:
1. The SINOLIFT drum handling equipment has been designed, developed and built to give outstanding long service with minimum maintenance required and assist with all manner of drum handling within industry and commerce. A sound long term investment!

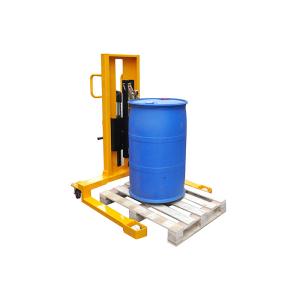

2. SINOLIFT Drum Stacker is manually operated and very easy to use.
Versatile, the Drum Stacker allows the operator to attach the 205 ltr steel drum, lift and stack. Lift is performed hydraulically using a foot pedal.
3. Able to carry the drum to rack (lower than 1150 mm).
4. Compact and reliable mechanism system to fix on to drum.
5. Manually (pedestrian) operated
Specification:
| Model | HT350A | |
| Lifting Capacity | kg | 350 |
| Drum Size | 33 gallon (Ø450x700),55 gallon (Ø572x900) Steel Drum,210L Plastic Drum | |
| Lifting Height | mm | 750 |
| Leg Self Width | mm | 90 |
| Front Castor | mm | Φ80 |
| Rear Castor | mm | Φ125 |
| Overall Dimensions | mm | 1090x1130x1550 |
| Net weight | kg | 115 |
